Varstrom 48V500W Front Wheel Hub Motor 26''27.5"700C EBike

Model：125EVH

Mounting Position ：Front Drive

Rated Voltage (V)：48V

Rated Power (W)：500W

Max Torque (N.m)：65N.m

Max Speed under Load (26" Wheel) ：40KM/h

Wheel Size Option (Inch)：20/26/27.5/700C

Freehub Body：Cassette

Gear Type：Gear Drive

Motor Type：Brushless

Number of Turns (T)：12T

Spoke Specifications：36H*12G

Rated Efficiency (%)： ＞78%

Noise level (dB)：<60 dB

Operating Temperature (℃)：-20℃ ~ 45℃

Waterproof Level ：IPX5

Over Locknut Dimension (MM)：100±1

Compatible Dropout Spacing (MM)：97-103MM

Max Current of Controller (A)：18A

Rated Current of Controller (A) ：9A

Rated Voltage of Controller (V)：48V

Controller Low-Voltage Protection (V) ：39±1V

Controller Size (MM)：110MM*64MM*30MM

• 1 pcs 48V500W Front Hub Motor with Wheel

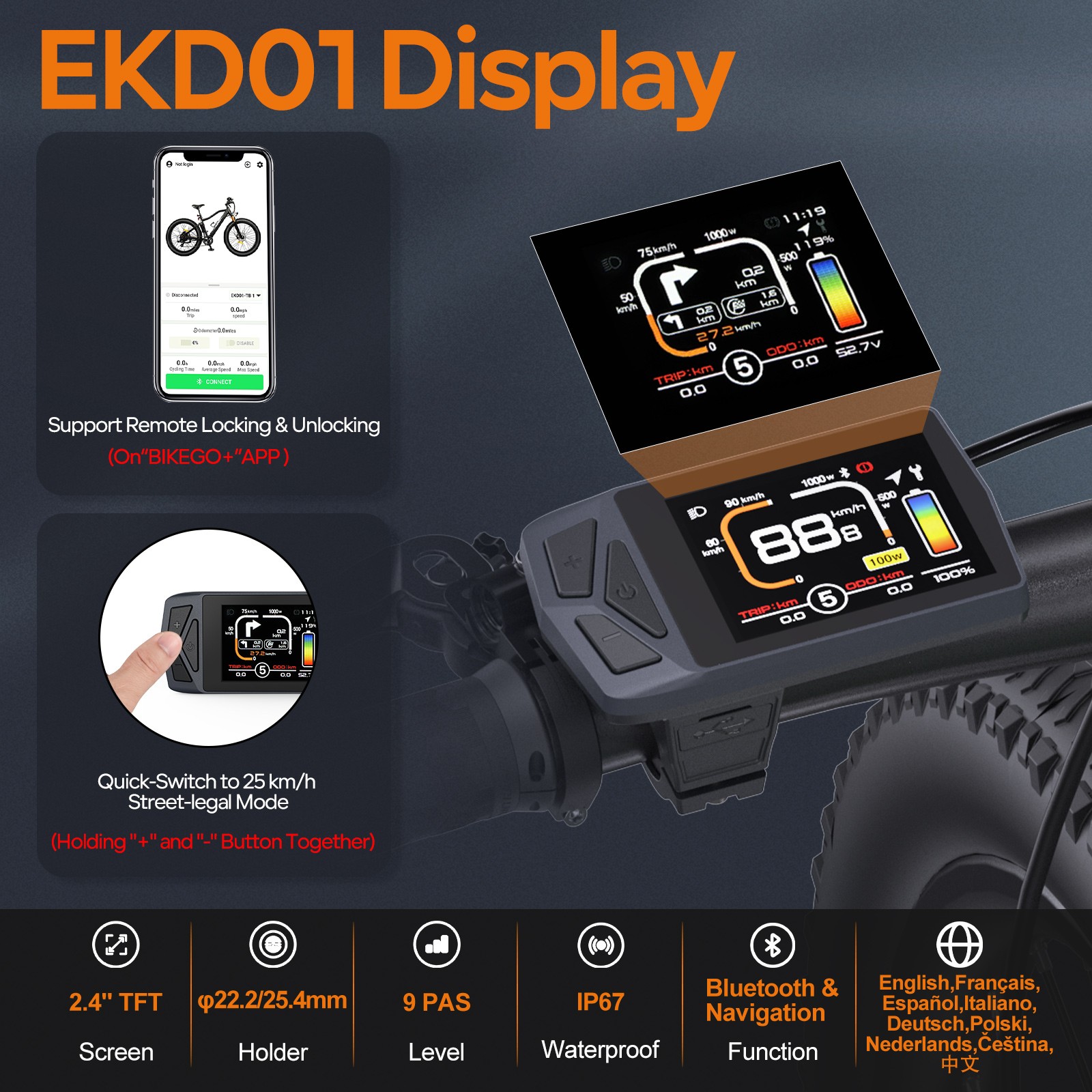

• 1 pcs Display(Optional)
• 1 pcs Left PAS sensor
• 1 pcs Controller Box
• 1 pcs Motor Controller
• 1 pcs Brake Lever or Brake sensor
• 1 pcs Thumb Throttle
• 1 pcs 1T4 Cable
• 1 pcs Headlight
• 1 pcs Plastic Straps
